STATOR + MOSFET KIT ASSTD APR MODELS SEE FIT (RMS900-107315)

  • Sale
  • Regular price $749.89
Tax included.

- This is our ONLINE STORE, not all Products are kept at our showroom location. To view stock in our Tauranga store please contact us with 3 days notice. Products purchased online will be shipped from our warehouse to your address within 3 days of purchase date.

- Any questions? Please call the friendly Bayride team on 07 571 3040.

- No returns on sale items.

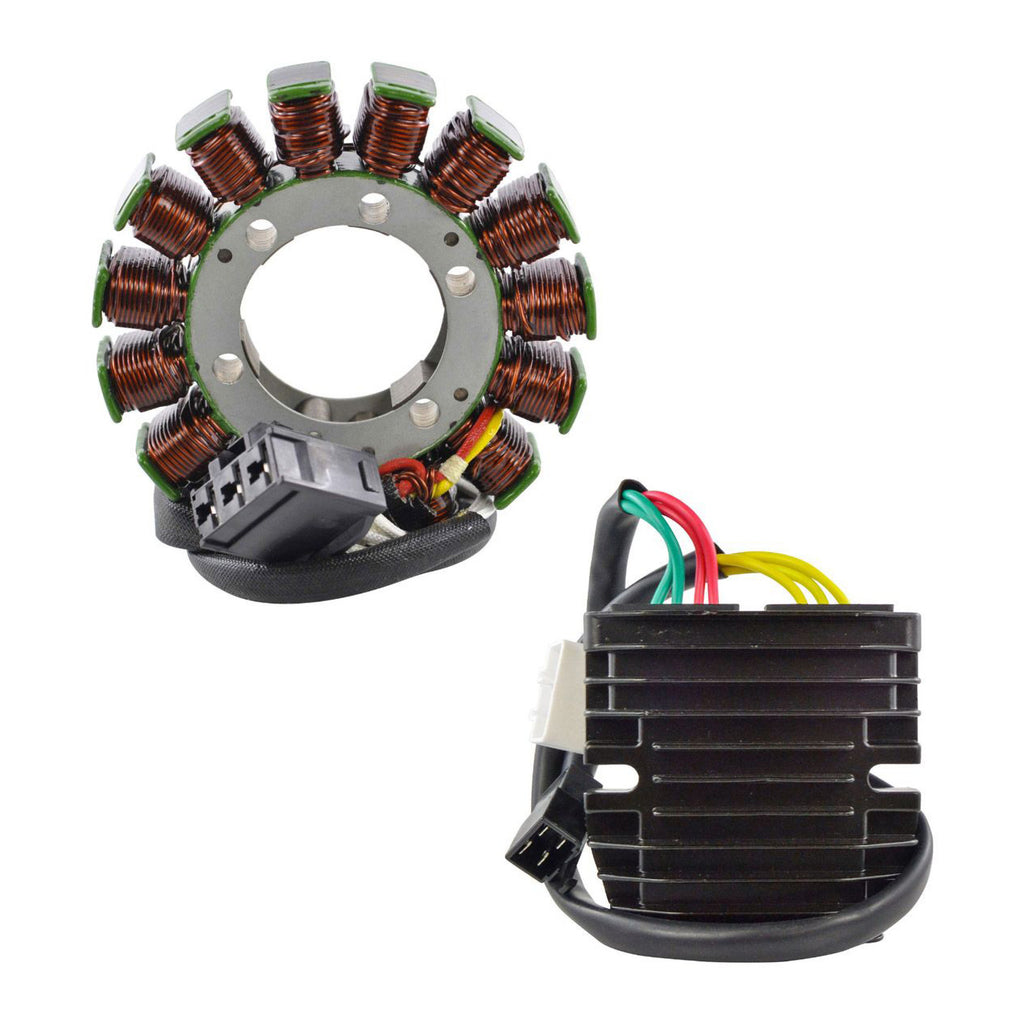

Kit Generator Stator + Mosfet Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested
  • All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

Brand new aftermarket stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Brand new Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Stator Dimensions
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 300 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator : Between each White = 0.4 ohms +/- 20%

Mosfet Voltage Regulator Rectifier Dimensions
Width: 95 mm
Length: 95 mm
Height: 28 mm
Wires length: 150 mm & 400 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20° to 85°
