MotoAccessories Bike Lifts & Accessories
Our High Quality Motorcycle ATV & Bike lifts come with side extensions.
The front extension is adjustable to different lengths and has a drop out section for easy rear wheel access.
Air Operated & Foot Pedal Control - pressure 90psi
Table length with rear ramp: 125"
Width with side extension: 48"
Adjustable Front Extension: 84" table, 97" stage 1, 105" stage 2.
Drop out Tail dimension: 14" x 21"
Lowered height: 7"
Max Rise: 33"
Safety lock heights to top of table : 19.5", 21.75", 23.5", 25", 27", 28.5", 30".
The main bench deck has dimensions of 2.135m (7ft) x .6m (2ft)
The side extension are 2.135m (7ft) x .305 (1ft)
Ramps (3 pce) to get the vehicle onto the bench are .5m (20") long and the same width as the ramp or extension they are attached to
The removable panel in the deck is .530 x .335
The recommended maximum weight for the lift is 1100lbs (540kg) with an absolute maximum of 1500lbs
Lift 2.22 x .66 x .27, weight 228kg
Side ext 2.22 x .33 x .13 weight 42kg

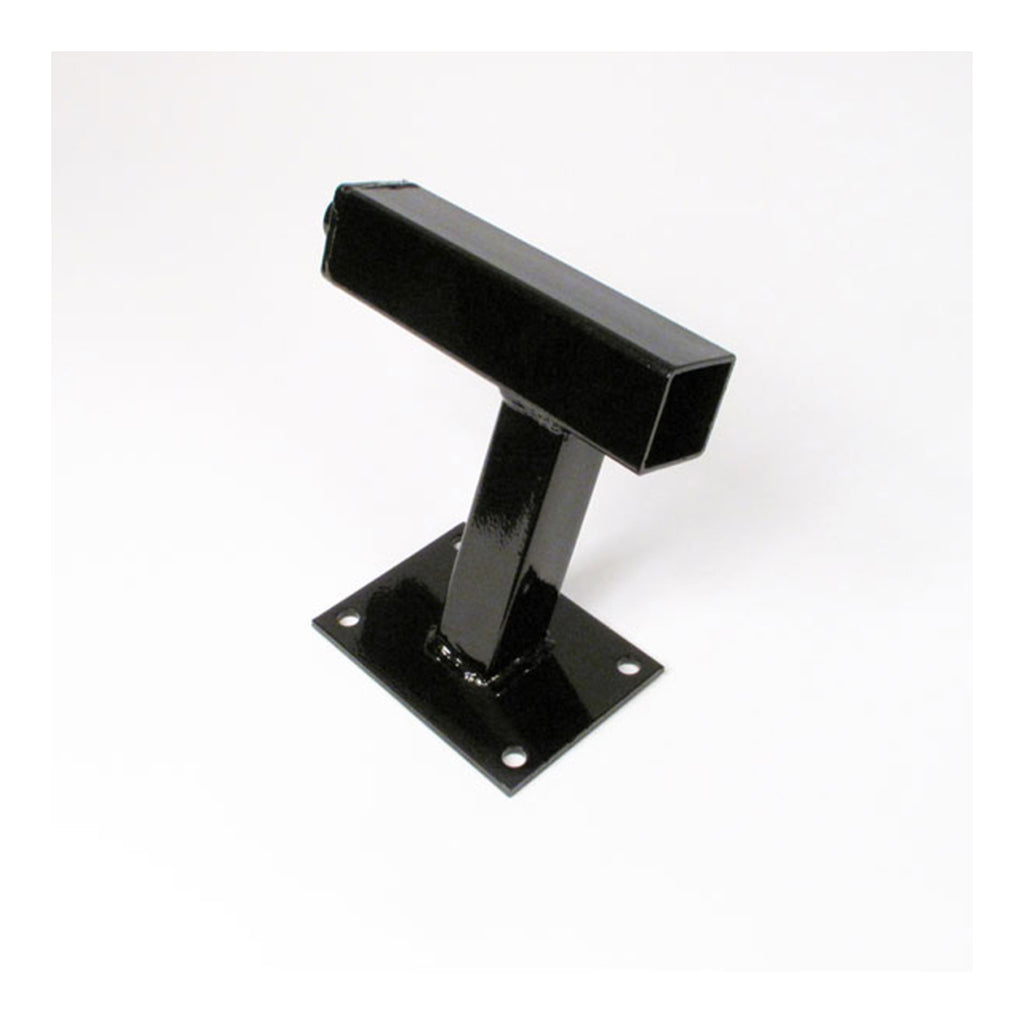

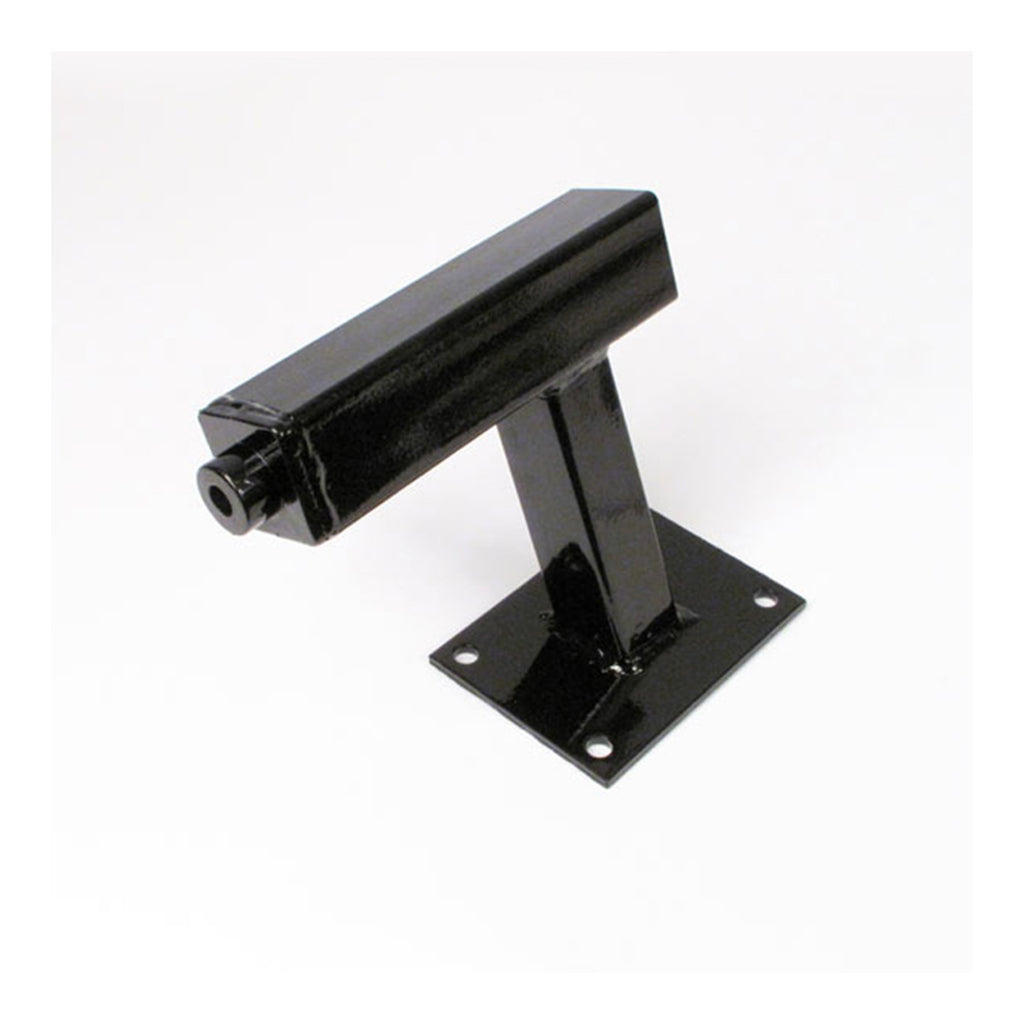

Supplied with side extensions, scissor jack, cycle vice, lift dolly and loading ramps. MOTO ACC LIFT TABLE PART ; CYCLE VICE COMPLETE
