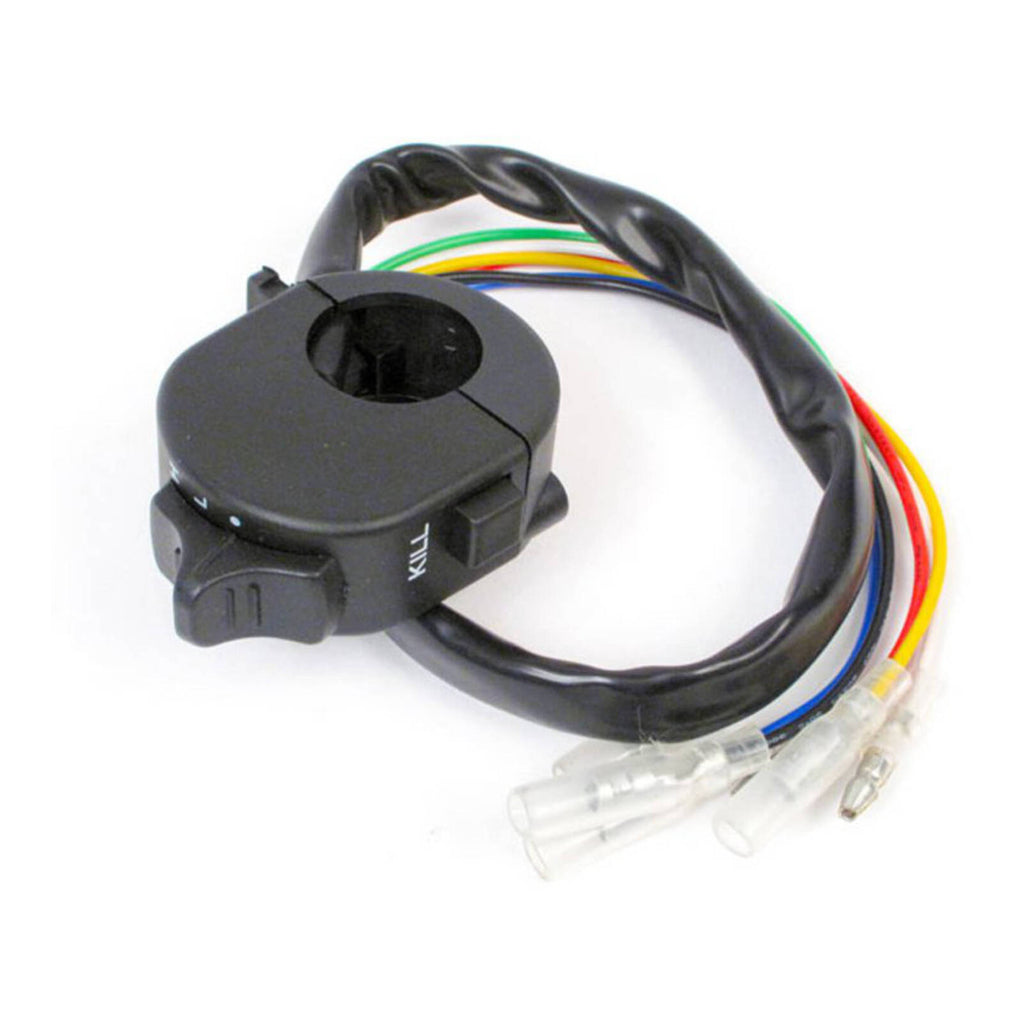

The WMP Headlight Switch Block features a slim, compact design with high, low and off headlight settings plus an integrated kill switch. Pre-wired with bullet terminals for quick installation, it is compatible with 7/8-inch handlebars. At only 20mm wide and 42mm high, it provides a compact alternative to bulky OEM switch blocks.
Features:
- Pre-wired with 18-inch cable and bullet terminals.
- Compatible with 7/8-inch handlebars.
- Full wrap-around design.
- Three-stage headlight switch: high/low/off.
- Includes kill switch.
- Voltage range: 11-15V.
- Maximum current: 2.5A.
- Material: ABS plastic.
- Width: 20mm.
- Height: 42mm.
Wiring Configuration:
- Red: Positive.
- Black: Earth.
- White: Kill switch.
- Green: Low beam.
- Yellow: High beam.
- Blue: Parking light.
