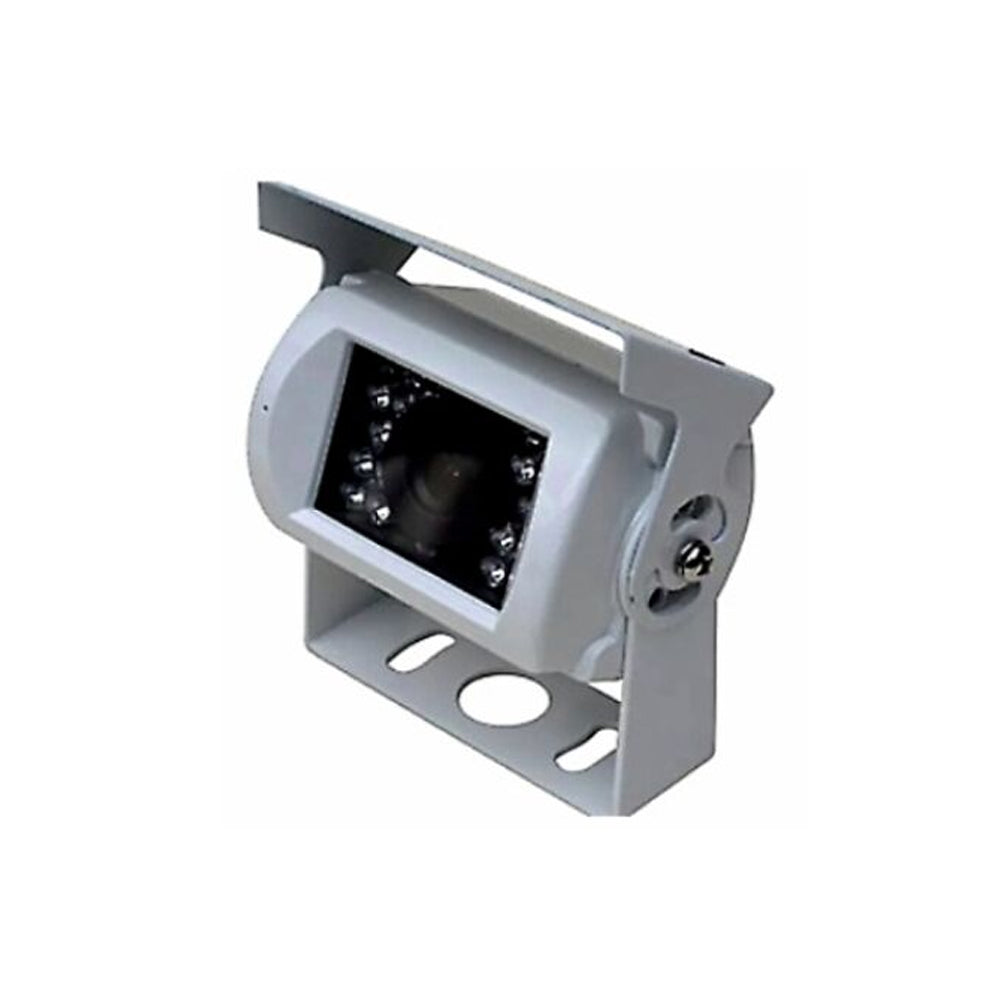

The Mongoose AHD range of cameras WILL ONLY WORK ON FHD MONITORS - 1080P
The AHD range offer a step up in image QUALITY and when connected to one of our AHD monitors a High Definition visual for your driver.
Specifications:
Mounting Type Surface mount U-bracket
Viewing Type Reverse
Lens Angle Degree Horizontal:95°
Vertical:75°
Diagonal:125°
Image sensor 1080p AHD sensor/SONY
Resolution 1280x1080
Signal System PAL
Waterproof level IP69K
Vibration Rating 4G
Working voltage 12V
Minimum illumination 0.1Lux,Infrared night vision
Number of IR LEDs 18pcs
Built in Microphone NO
Connection Type 4pin aviation connector
Cable length 0.6m power line
Dimensions 86.5mm*77mm*75mm
Housing color Black
Working Temperature -20? to 70?
Storage Temperature -30? to 80?
Inclusion 1x Hexagon screws, 1xhexagon wrench, 1x sunshade, 1x U-shape bracket, 1x user manual, 1x4pin-RCA adapter, 1xDC power cable
Requires camera cable to suit installation length - not included
