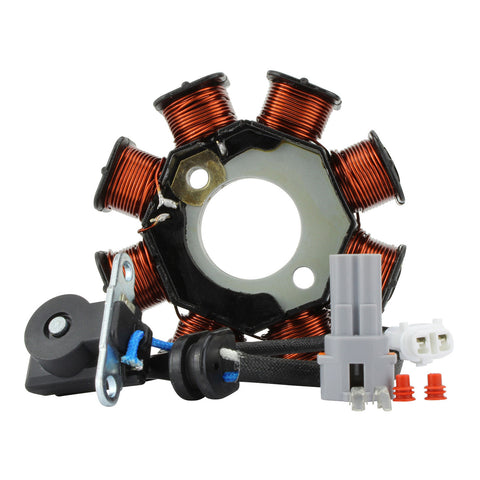

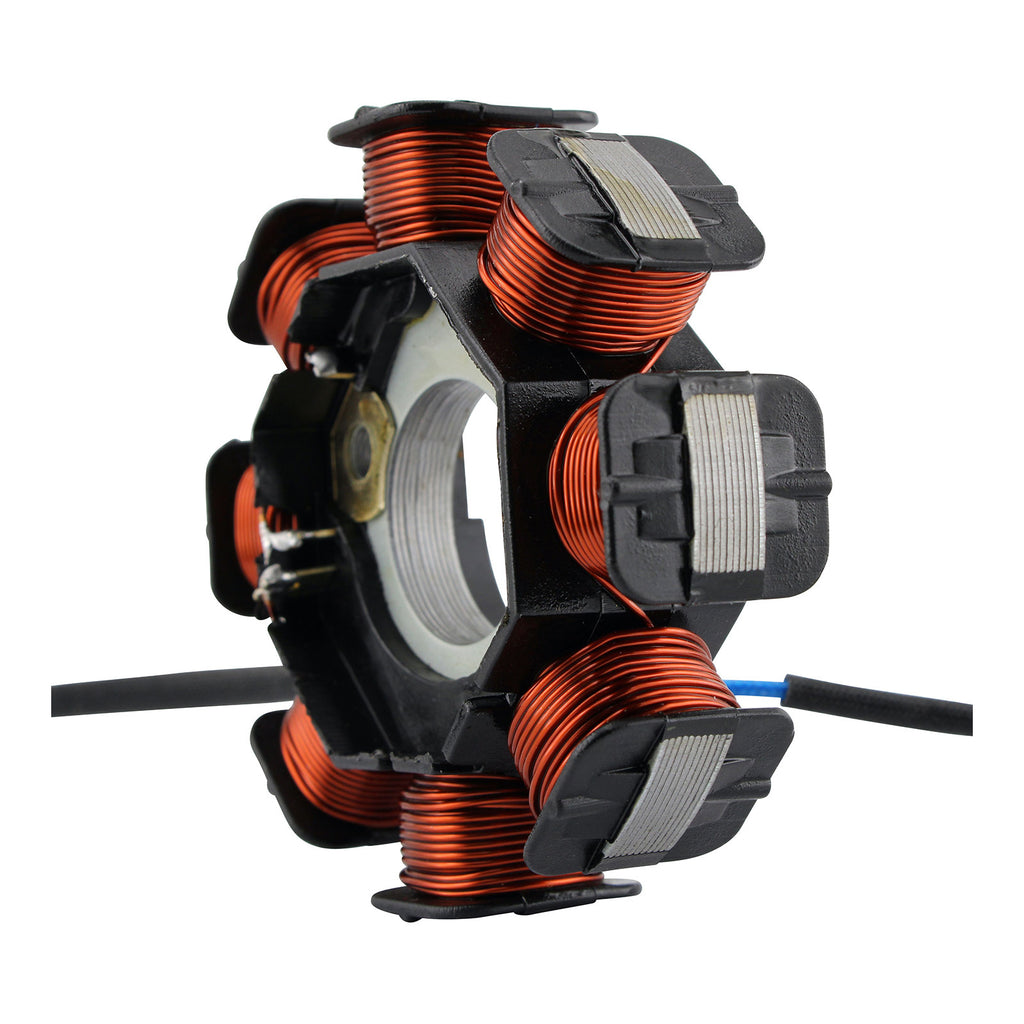

Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 29 mm
- Exterior diameter: 88 mm
- Thickness: 10 mm
- Length of wires stator to grommet: 150 mm
- Length of wires grommet to plug: 150 mm
- Length of pickup coil's wire to grommet: 120 mm
Other specifications:
- Number of wires: 2
- Number of plugs: 1
- Number of holes: 2
- Number of poles: 8
Wire to wire resistance:
- Alternator: White to Ground = 1.2 ohms +-20%
- Pickup: Blue/yellow to Ground = 118 ohms +-20%
